A
A
Electric fuel pump.
Fuel accumulator.
Fuel filter.
Warm-up regulator.
Injector.
Electric start valve.
Fuel distributor.
Air-flow sensor.
Thermo-time switch.
10. Auxiliary-air regulator
K-Jetronic
Electric fuel pump.
Fuel filter.
Fuel-pressure regulator
Injector.
Hot-wire air-mass sensor.
Engine-temperature
sensor.
Rotary idle actuator.
Throttle-valve switch.
Lambda sensor.
10. ECU.
LH-Jetronic

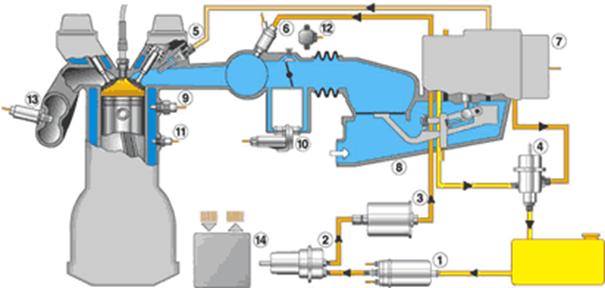

Electric fuel pump.
Fuel accumulator.
Fuel filter.
System pressure
regulator
Injector.
Cold-start valve.
Fuel distributor.
Air-flow sensor.
Thermo-time switch.
10. Auxiliary-air regulator.
11. Engine-temperature
sensor.
12. Throttle-valve switch.
13. Lambda sensor.
14. ECU.
KE-Jetronic
Electric fuel pump.
Fuel filter.
3a. Throttle-valve
potentiometer
3b. Pressure regulator
3c. Injector
3d. Connector plug with intake-air
temperature sensor
3e. Throttle-valve idle actuator
Engine temperature sensor.
Lambda sensor.
ECU.
Mono Jetronic / Mono Motronic
Electric fuel pump.
Fuel filter.
Fuel-pressure regulator
Injector.
Air-flow sensor.
Thermo-time switch.
Auxiliary-air regulator.
Throttle-valve switch.
Lambda sensor.
10. ECU.
L-Jetronic
Motronic
